Bridged Tower

Used to form a deck bridge between towers to permit movement from side to side, and also to form a larger than normal tower deck.

Enquire about a similar project

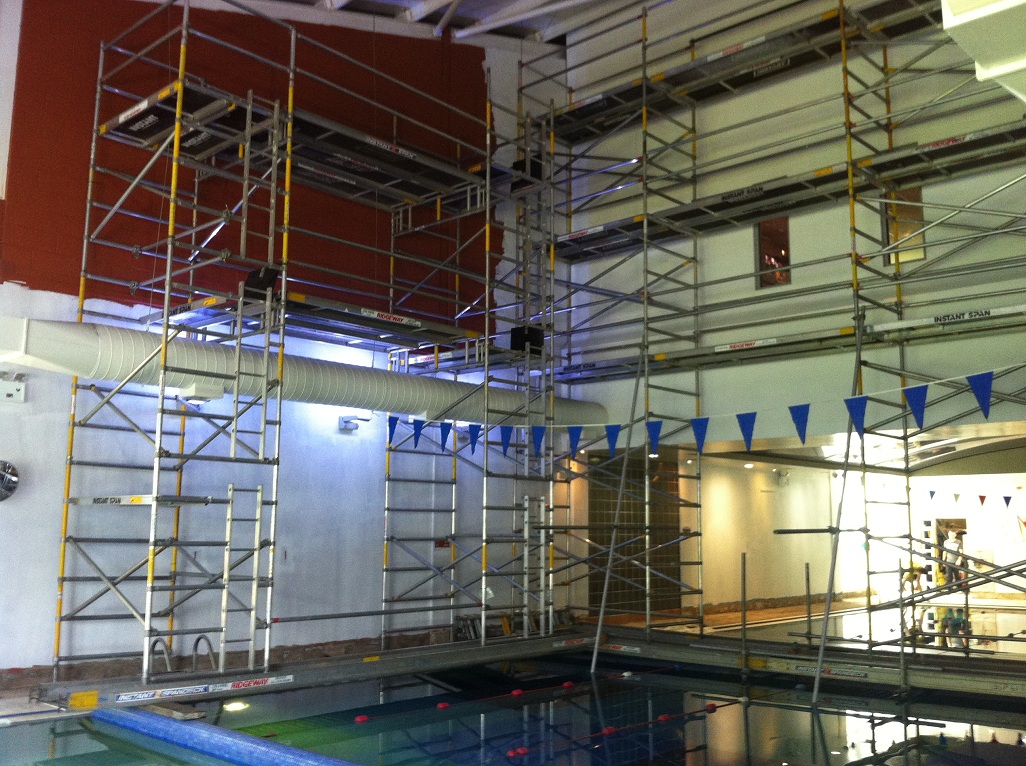

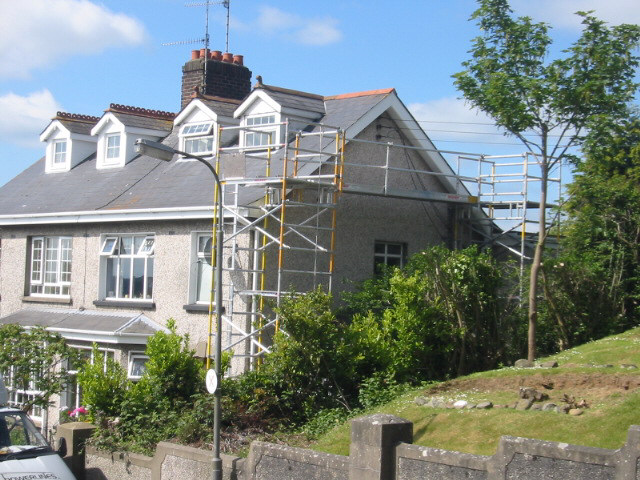

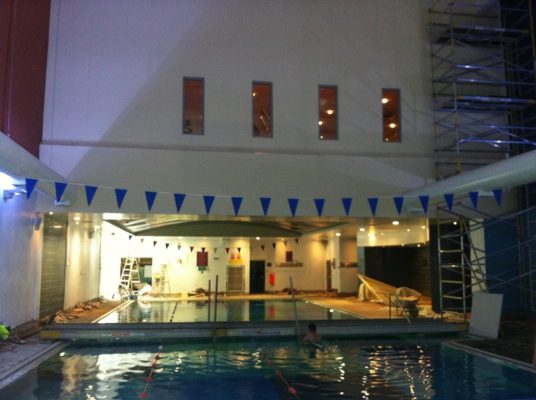

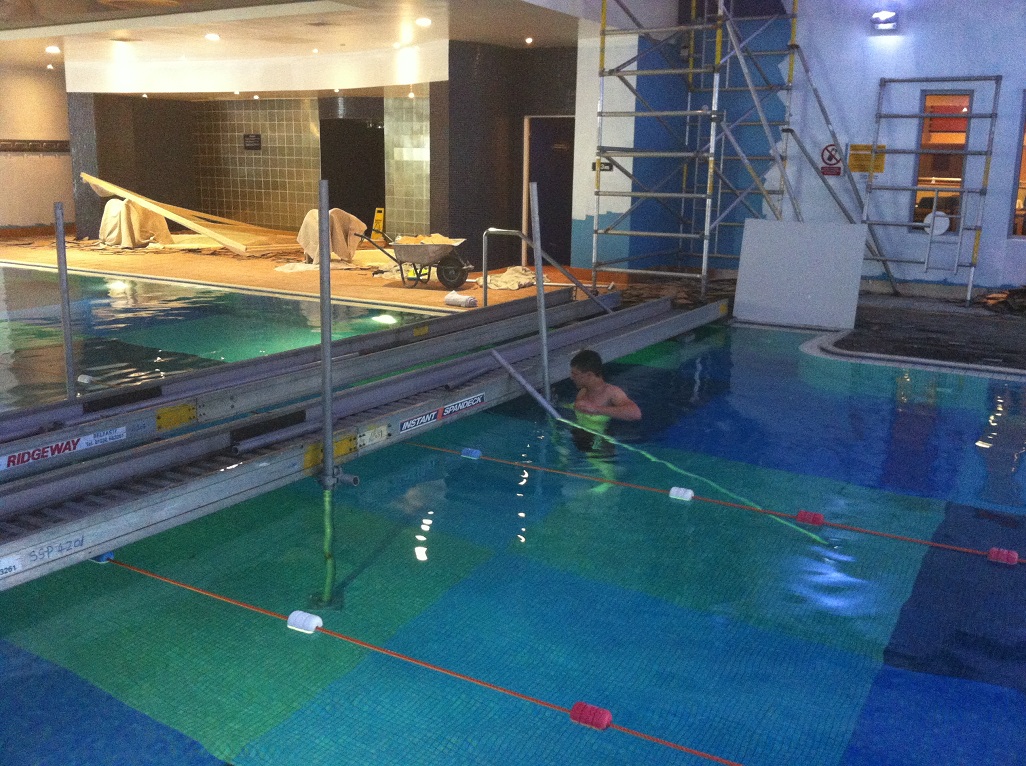

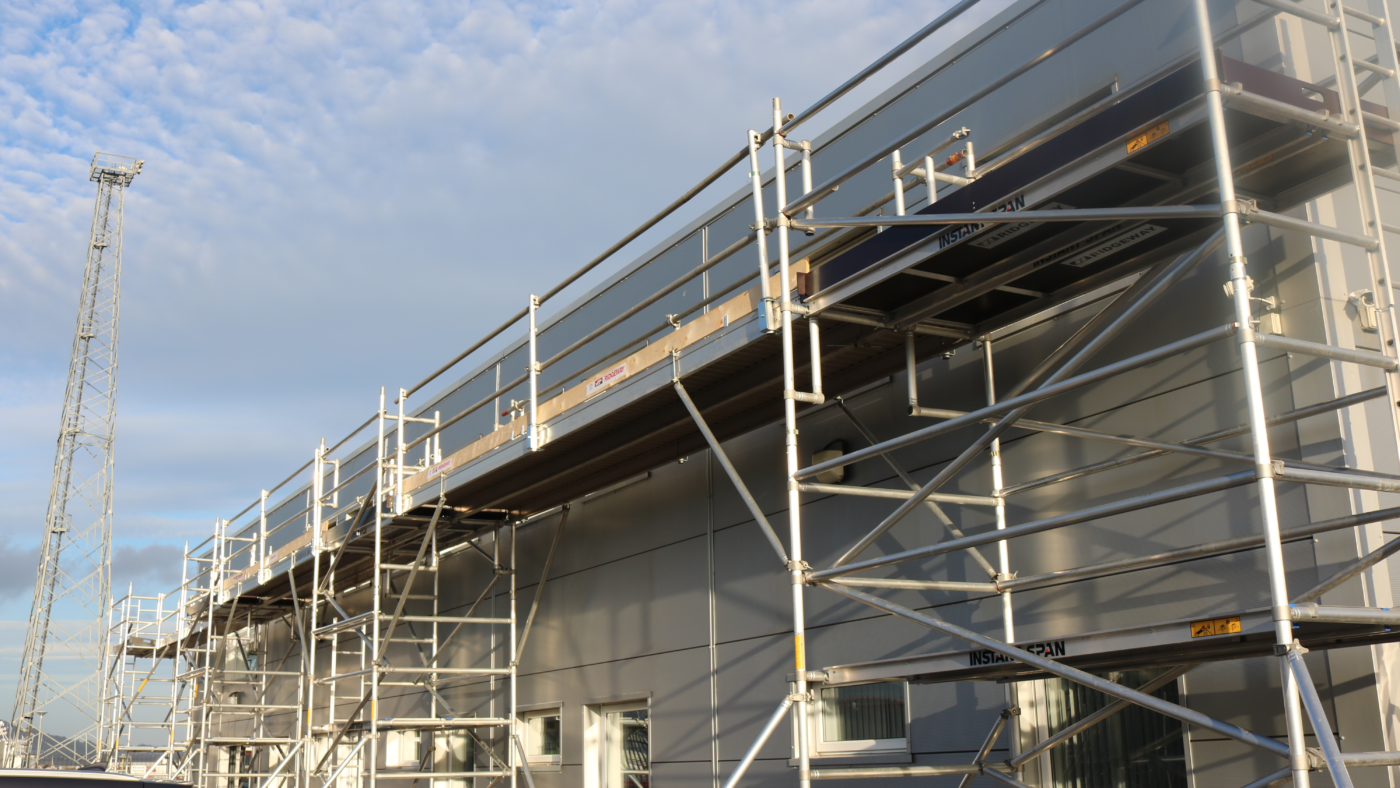

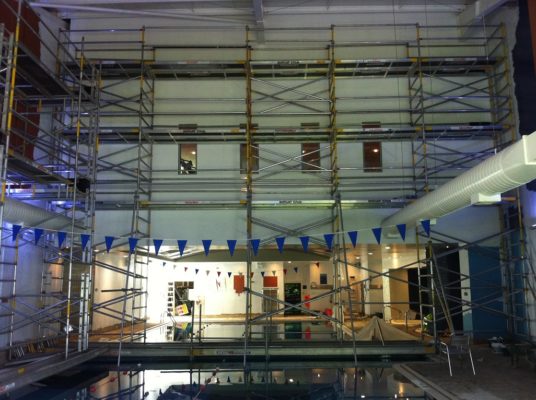

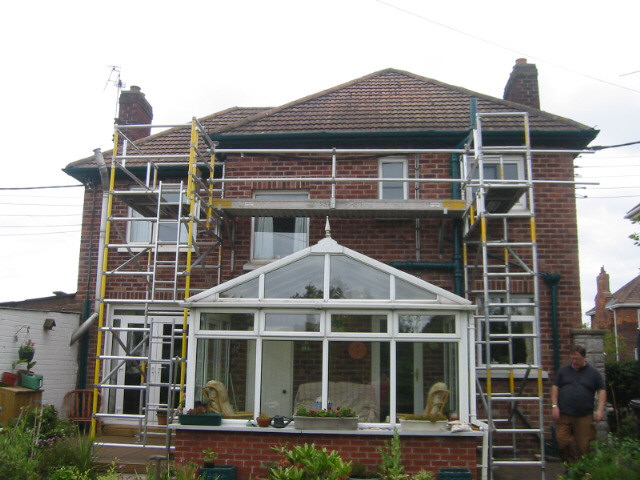

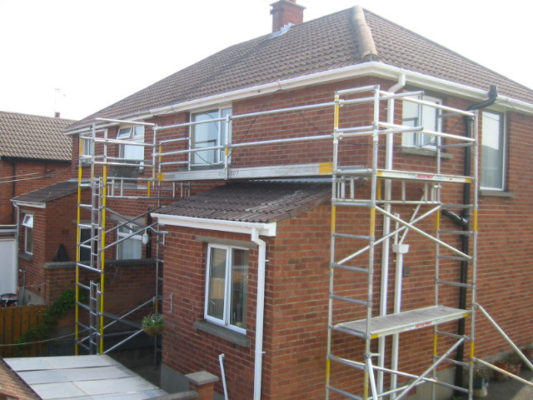

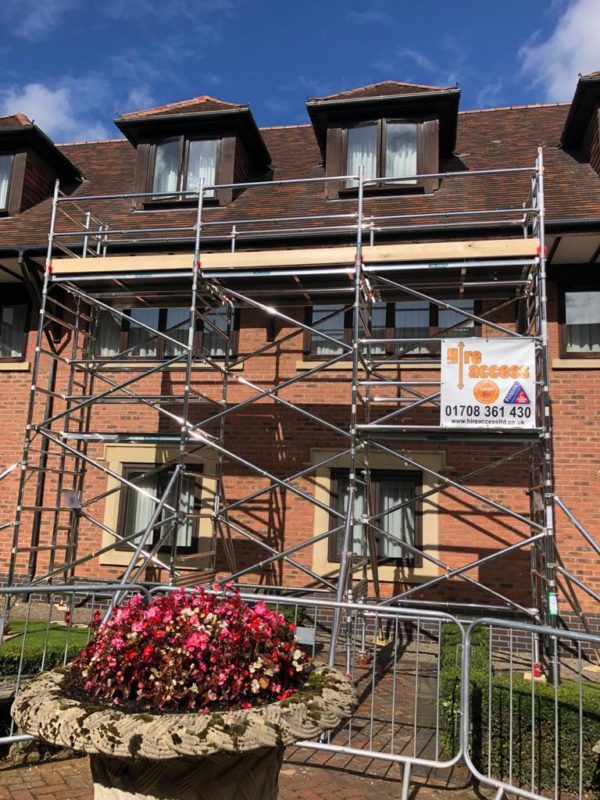

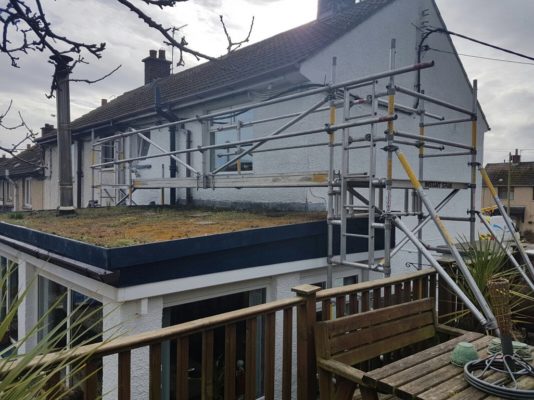

Bridged Tower Examples



DESIGN CRITERIA
This tower structure and its components have been designed in accordance with EN1004:2004 and BS1139-6: 2014. This tower is suitable for both INDOOR and OUTDOOR use. The following tables show the permissible loads on the tower.
MAXIMUM SAFE WORKING VERTICAL LOAD
PLATFORM SAFE WORKING LOAD275 Kg over TWO platforms (evenly distributed)
SPANDECK SAFE WORKING LOAD275 Kg over TWO spandeck (evenly Distributed)
TOTAL SAFE WORKING LOAD ON TOWER CONFIGURATION825 Kg max. (evenly distributed)
SAFE WORKING HORIZONTAL LOAD
TOP PLATFORMS OF MAIN TOWER30 Kg exerted by ONE person only
NO. OF PERSONS ON TOWER
During USE, ASSEMBLY AND DISMANTLEMax. 3 persons
TOWER LOCATION
INDOOR USEYes
OUTDOOR USEYes
PDF Download



KEY ADVANTAGES

  • Our system complies with all leading International Design, Quality, Safety and Manufacturing Standards
  • A Safety factor of 4 applies to structure design, and unlike steel systems, a standard 5-year warranty period applies.
  • All springs, pins, bolts & miscellaneous hardware are tested & guaranteed as part of the bridged tower system.
  • Full product & engineering support is provided
