Stepped Tower Structure

Working on a stair or the reach height is stepped? No problem!

We can link towers to create various working platform access levels, including over obstructions or on a sloped group.

Enquire about a similar project

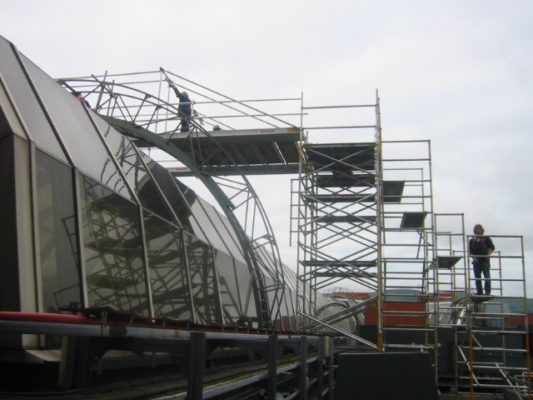

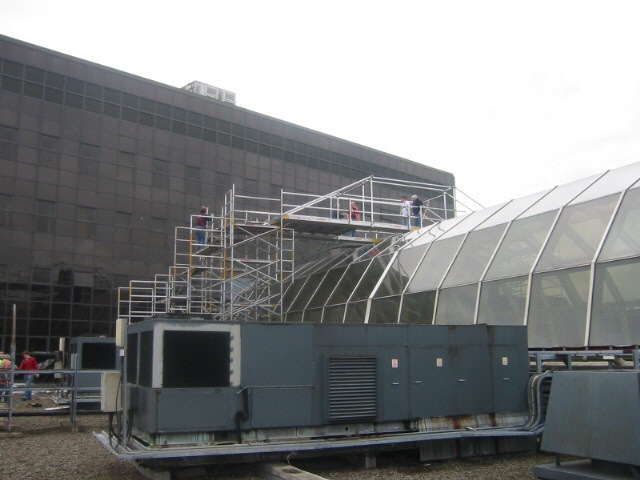

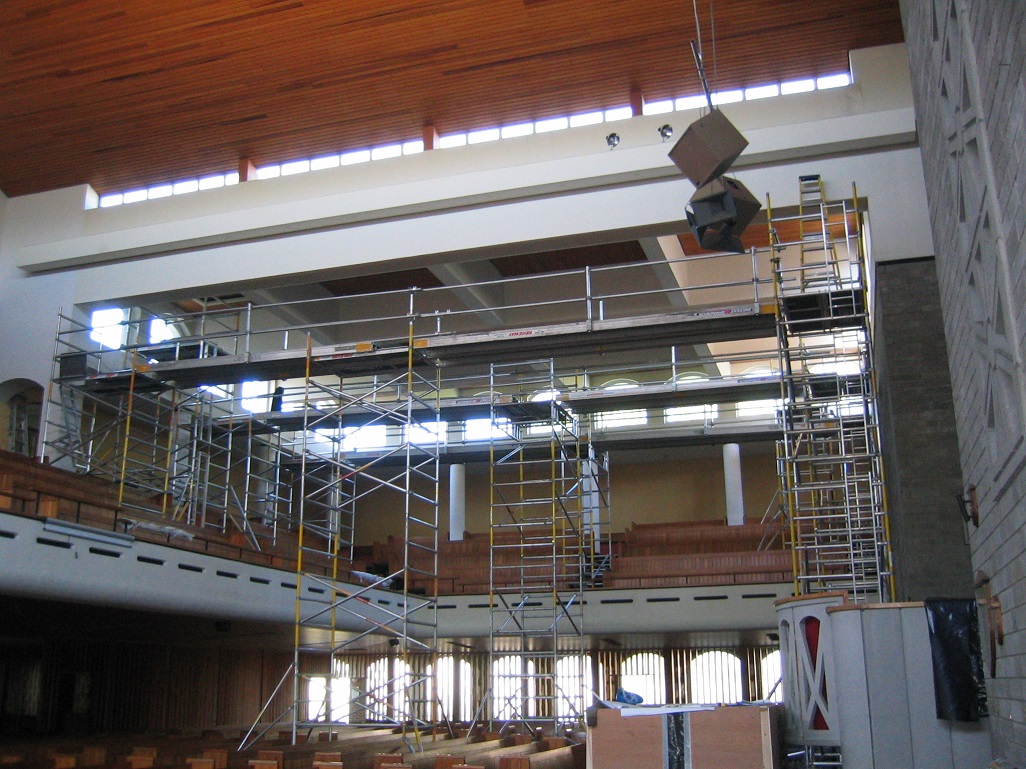

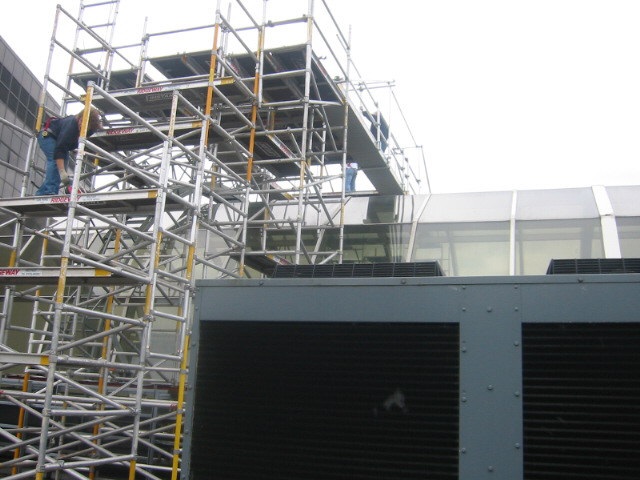

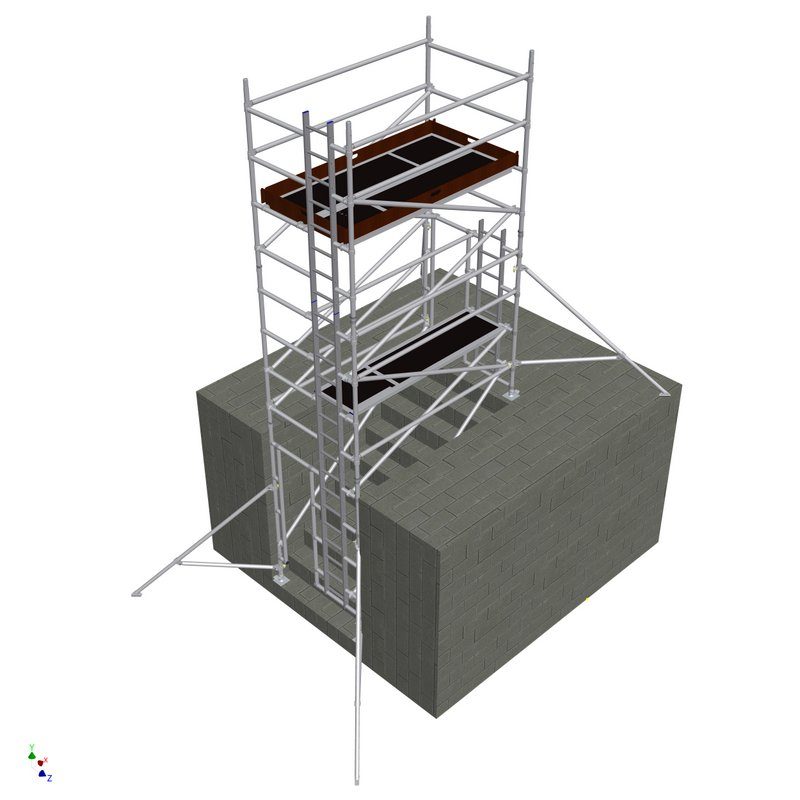

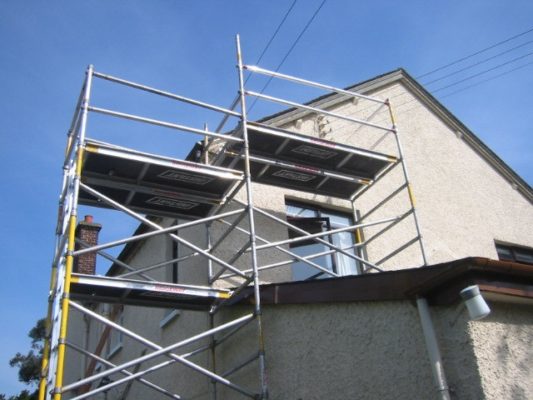

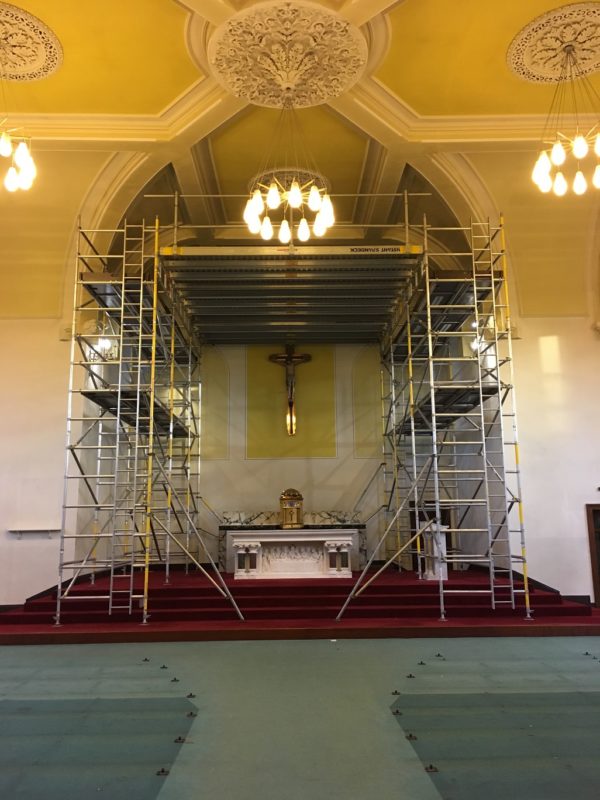

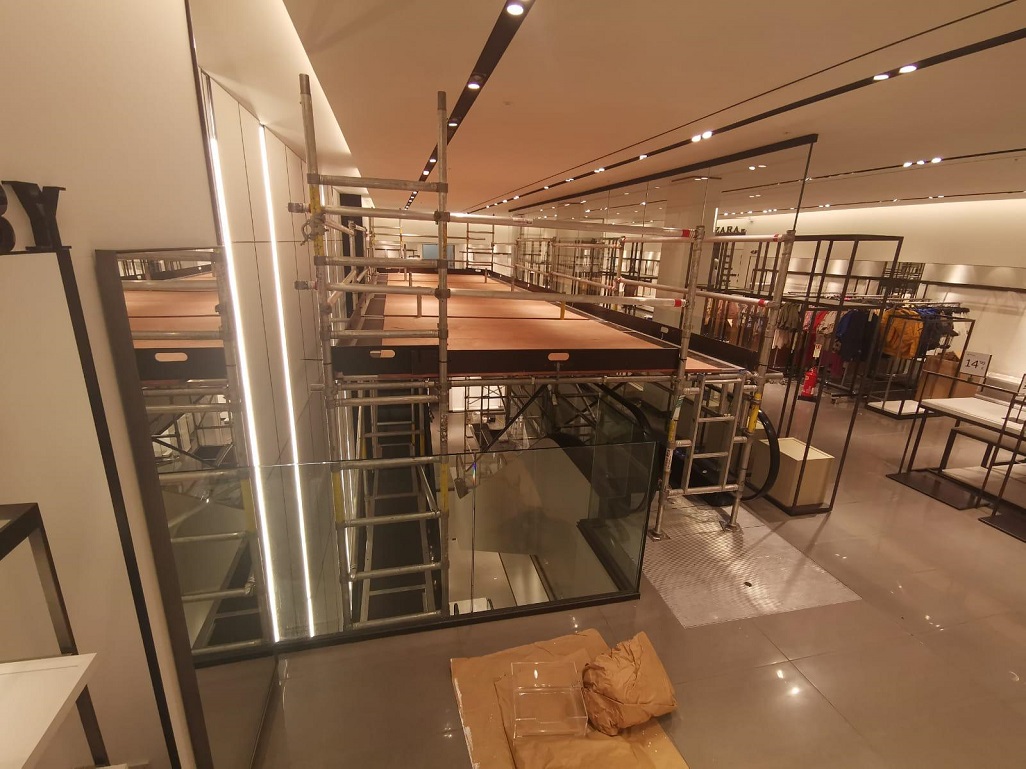

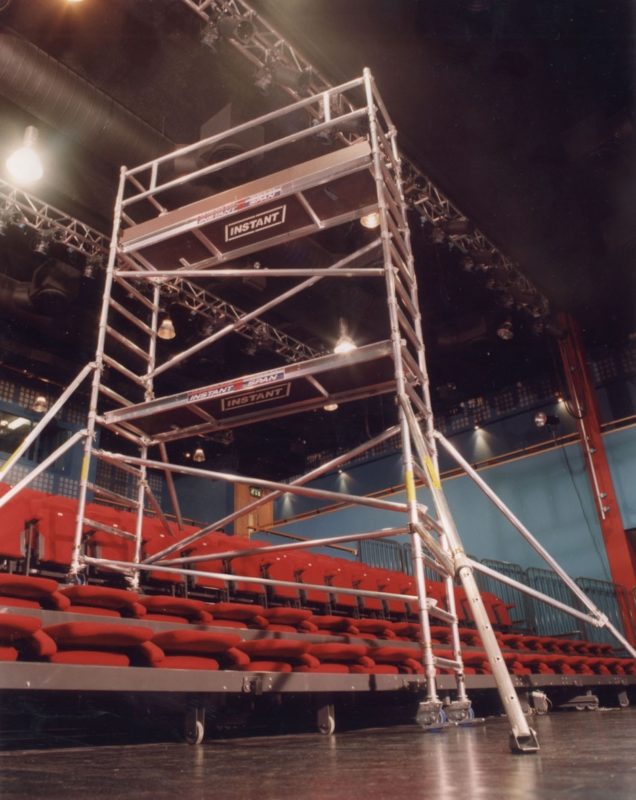

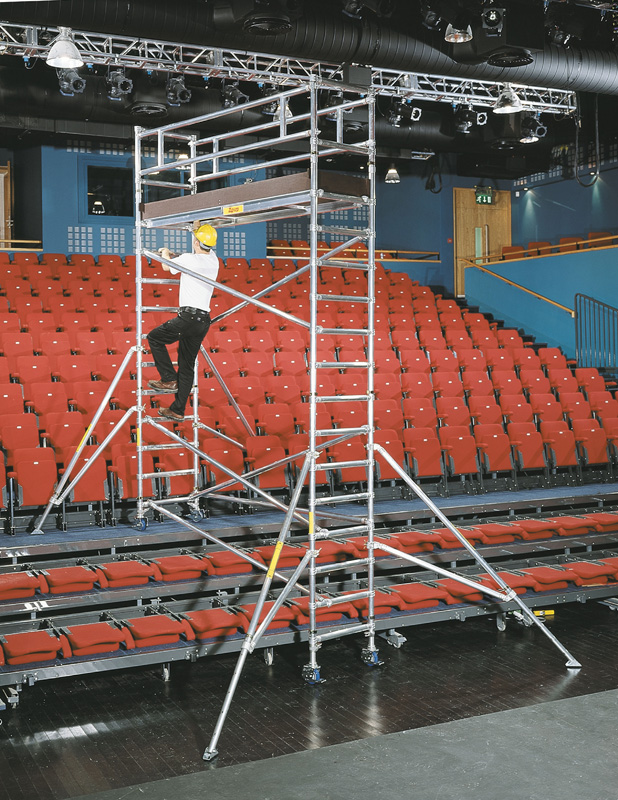

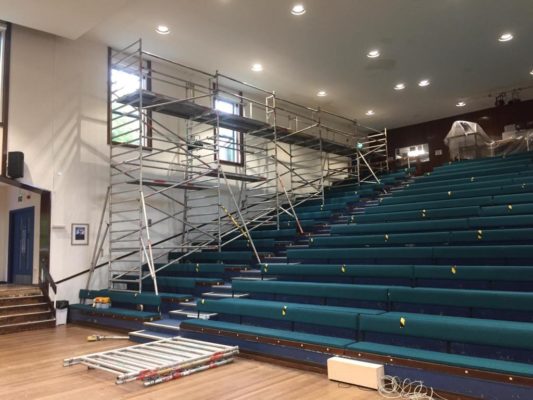

Stepped Tower Structure Examples

1. DESIGN CRITERIA
This tower structure and its components have been designed in accordance with EN1004:2004 and BS1139-6: 2014. This tower is suitable for both INDOOR and OUTDOOR use. The following tables show the permissible loads on the tower.
MAXIMUM SAFE WORKING VERTICAL LOAD
TOP PLATFORMS OF MAIN TOWER275 Kg over TWO platforms (evenly distributed)
LOWER PLATFORM LEVEL275 Kg (evenly distributed)
TOTAL SAFE WORKING LOAD ON TOWER CONFIGURATION550 Kg (evenly distributed)
SAFE WORKING HORIZONTAL LOAD
TOP PLATFORMS OF MAIN TOWER30 Kg exerted by ONE person only
NO. OF PERSONS ON TOWER
During USE, ASSEMBLY AND DISMANTLE3 persons (Max. 2 persons permitted on top platform level)
TOWER LOCATION
INDOOR USEYes
OUTDOOR USEYes
PDF Download



KEY ADVANTAGES

  • Our system complies with all leading International Design, Quality, Safety and Manufacturing Standards
  • A Safety factor of 4 applies to structure design, and unlike steel systems, a standard 5-year warranty period applies.
  • All springs, pins, bolts & miscellaneous hardware are tested & guaranteed as part of the stepped tower structure.
  • Full product & engineering support is provided
